      Why I don't see the field value animation in Wind Fields module's report?

      There could be two reasons:

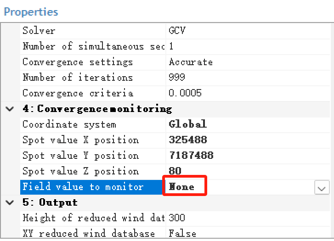

      1. the "Field value to monitor" in Wind Fields module for this calculation has been set to "None".
      2. the simulations have been executed for more than 999 iterations.
        WindSim currently only accepts up to 999 iterations in generating fields value. The GLview component could crash reporting "Unable to open scalar file SP3D_1000.scl" or similar. Just kill the GLivew popup if that happens. The field value animation will not show in the report, but the simulation and results are not affected by this issue.
