      Flowres export - workaround

      I want to export my WindSim project to WindPro

      To make sure that you have the updated version of the flowres export, follow the instructions below.

      Fix to flowres export:


      Export:       The FlowRes export is producing a .flowres file which is a zipped file. Unfortunately it is using the wrong compression, so windPRO does not recognize the file.
      Work around: Unzip the .flowres file, rezip it with normal .zip compression and rename it to .flowres again.
      Fix: Download replace the Export.exe in C:\Program Files\WindSim\WindSim 12.0.0\bin with this version [Exports]



      Steps to get a flowres export:


      First you need to run your WindSim Project up to and including the WindFields.

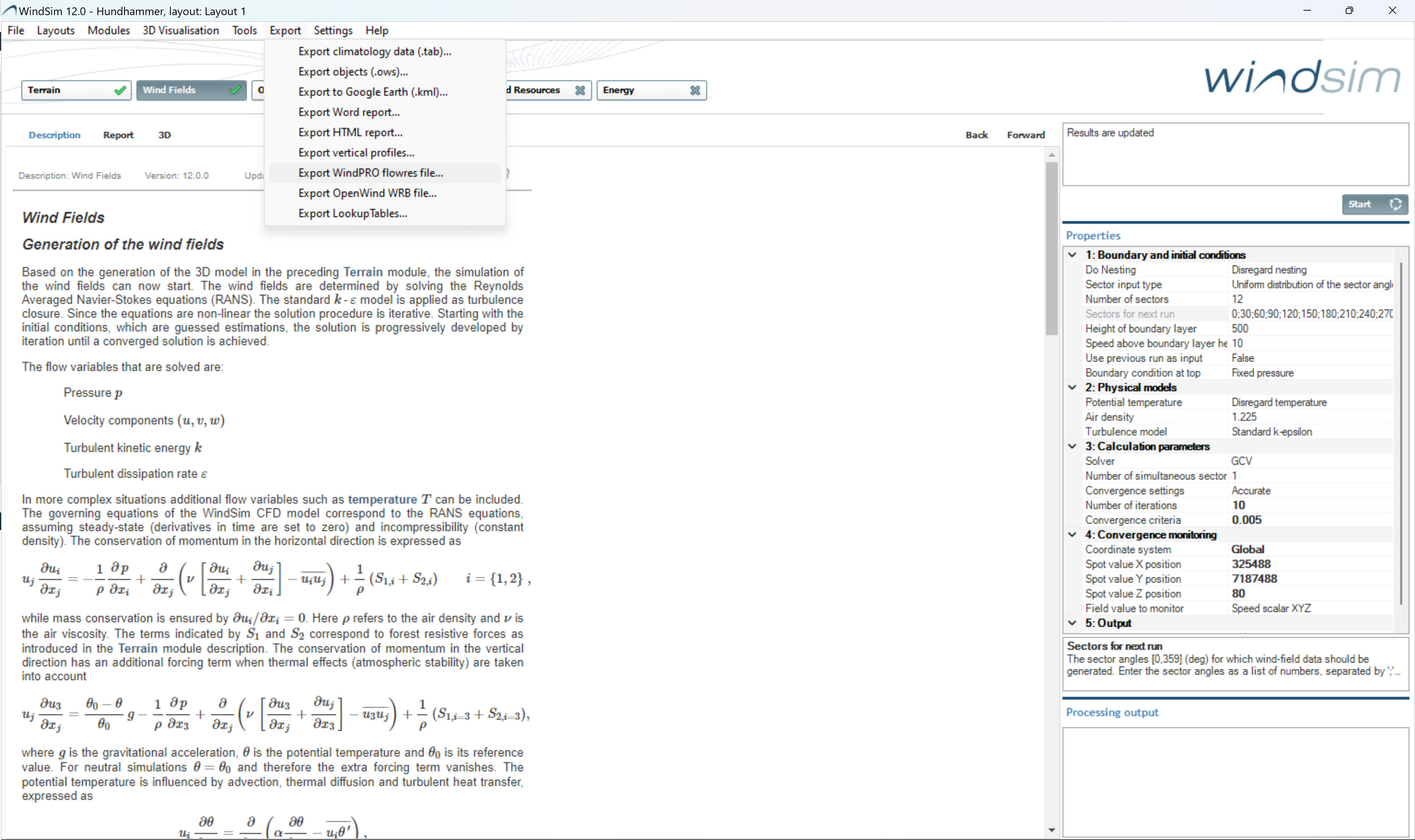

      Then select Exports->Export WindPRO flowres file.

      The flowres file will be stored in the project as windfield/flow_EMD.flowres.

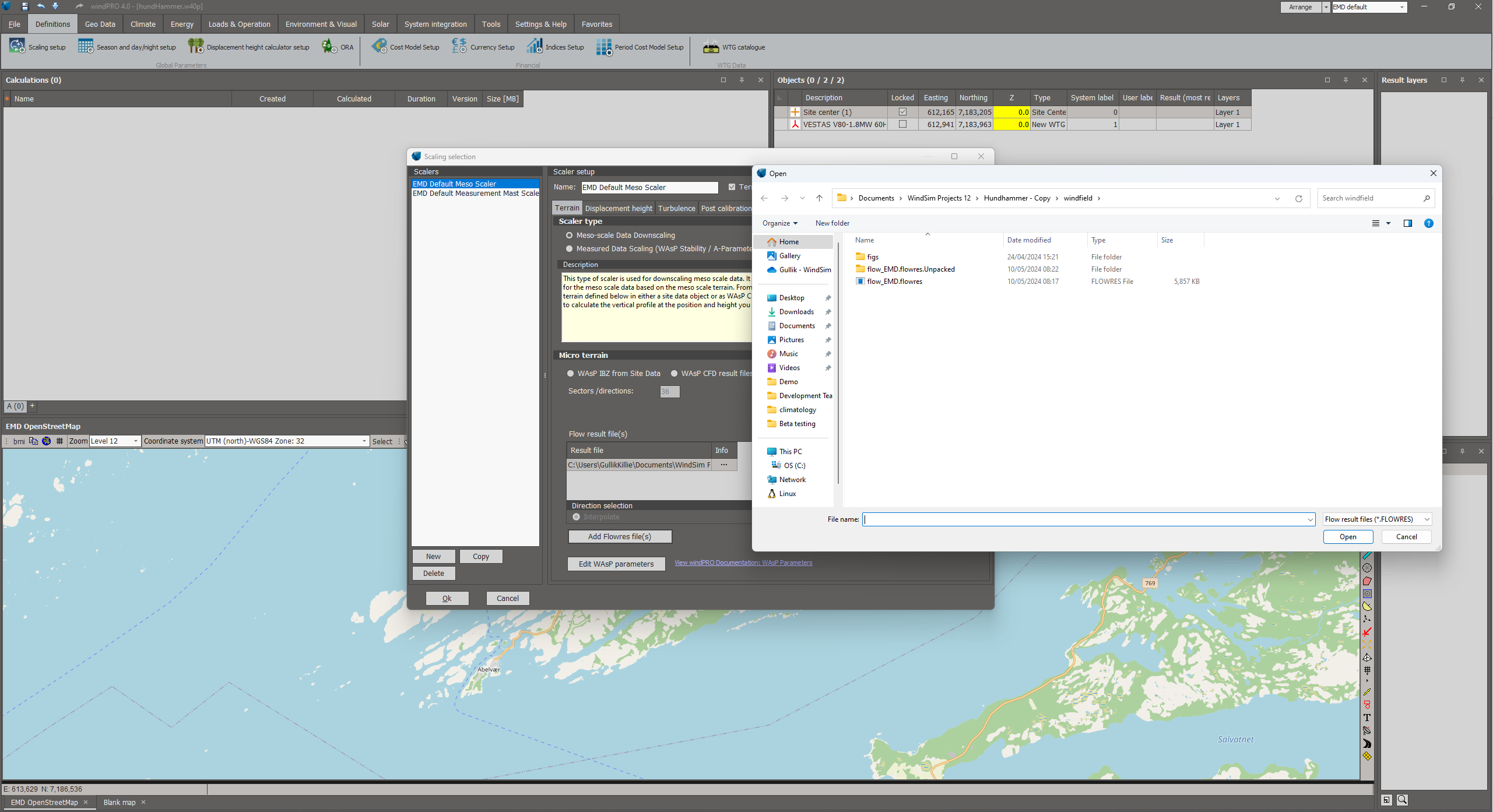

      Then select the file in WindPRO
